Digital Security Wired Quad Touch Screen Backup System
Product Description
Digital Security Wired Quad Touch Screen Backup System
Touch Screen Quad Monitor Backup Camera System (DF-767C05104)
Touch Screen Quad Monitor Backup Camera System Widely used in Bus, Farm Tractor,Agricultural Machinery,Security vehicles and other visual aids monitoring.

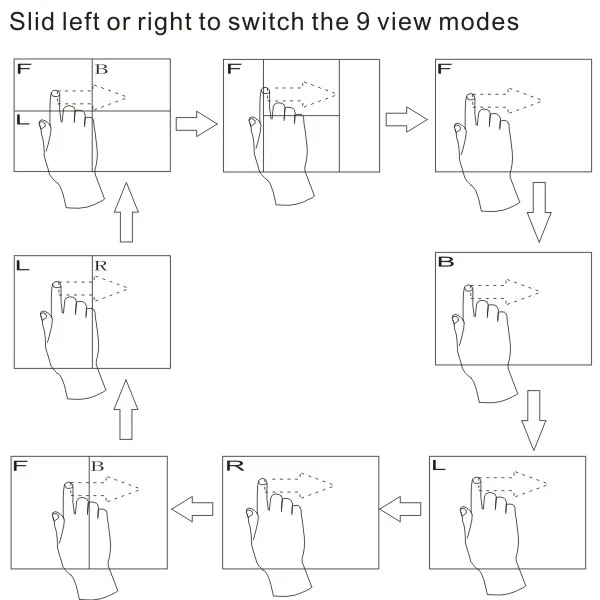

7 inches touch screen monitor support quad,triplex,dual,single 9 different view modes,

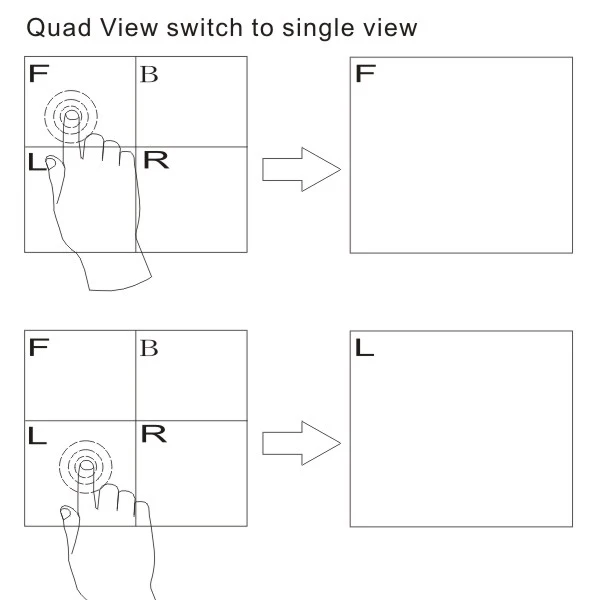

Single- point touch display single image,dual- point touch display dual image,slid to turn on/off,shortcut touch to single view,easy to oprate
OSD MENU Separately Set Each Image Mode On/Off,Trigger Priority, Delay Time 0-30s
700 TVL Aluminum Shell Side Camera IP69K Waterproof and 10G Vibration, Always Positioned Correctly, No Matter What The Location
Specification










Contact us if you need more details on Wired Backup System. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Digital Quad System、Security Backup System. If these products fail to match your need, please contact us and we would like to provide relevant information.
Touch Screen Quad Monitor Backup Camera System (DF-767C05104)
Touch Screen Quad Monitor Backup Camera System Widely used in Bus, Farm Tractor,Agricultural Machinery,Security vehicles and other visual aids monitoring.
7 inches touch screen monitor support quad,triplex,dual,single 9 different view modes,
Single- point touch display single image,dual- point touch display dual image,slid to turn on/off,shortcut touch to single view,easy to oprate
OSD MENU Separately Set Each Image Mode On/Off,Trigger Priority, Delay Time 0-30s
700 TVL Aluminum Shell Side Camera IP69K Waterproof and 10G Vibration, Always Positioned Correctly, No Matter What The Location
Specification
7"Digital Screen TFT LCD Monitor |
OSD MENU Separately Set Each Camera Trigger Priority Rear View Camera Visor System |
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s Drive Monitor |
OSD MENU Separately Set Each Camera Mirror/Normal image Rear View Camera Visor System |
Manual and Automatic Switch Display Mode. Rear View Camera Visor System |
Color System:PAL/NTSC (AUTO) Rear View Camera Visor System |
Display Resolution: 800RGB(H) X 480(V) dot . Rear View Camera Visor System |
Support Two Camera Video Inputs:1.0Vp-p75Ω . Rear View Camera Visor System |
Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 Rear View Camera Visor System |
Brightness (cd/m2): 400 Rear View Camera Visor System |
Contrast ratio: 500:1 Rear View Camera Visor System |
Back-light:Single LED Rear View Camera Visor System |
Operating temperature: -20°C to +70°C Rear View Camera Visor System |
Storage temperature: -30°C to +80°C Rear View Camera Visor System |
Load Dump: DC14+87V(Td400mS) 5pulses Rear View Camera Visor System |
Free Operating Voltage DC11-32V Rear View Camera Visor System |
External dimensions: (L x W x T) (199 x 128 x 28mm) without mounting Sun Visor |
Weight Approx: 379g Rear View Camera Visor System |

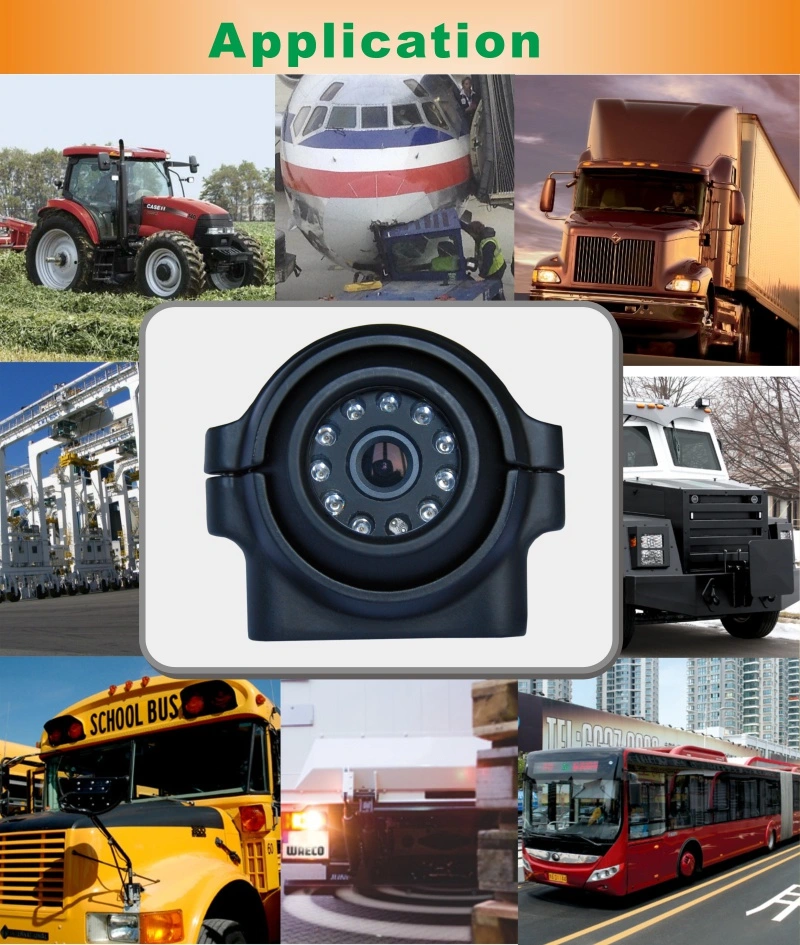

Aluminum Shell Waterproof IR Side CCD Camera(MODEL:DF-8059*4) |
Image Type: 1/3 inch Color CCD |
Resolution:700TV Lines |
Effective pixel:NTSC:976(H)×494(V) PAL:976(H)x582(V) |
Usable Illumination : 0Lux( Built in 10pcs IR LED's for Picture Support in the Dark) |
Free viewing angle: 130° |
Waterproof: IP69K |
Shockproof: 10G |
Video Output:1.0Vp-p75Ω |
Power supply:DC12V (from Reversing Monitor) |
Dimensions: 74(W) x 49(H) x 57(D) mm |
Product Accessories |
U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,15m cable*4, Auto cigarette lighter,User's Manual |










Contact us if you need more details on Wired Backup System. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Digital Quad System、Security Backup System. If these products fail to match your need, please contact us and we would like to provide relevant information.
