Reversing Rear View Camera Backup System for Tractor and Agricultural Machinery

1080P DVR Quad Waterproof Monitor Camera System
7" HD screen monitor built-in TF card DVR
IP68 Waterproof level and pressure relief valve design
HD Screen Resolution 1024 * 600
Supports local recording preview playback function
Supports abnormal power-off protection to reduce data loss
Support four-way 1080P/960P/720P/CVB signal mixed input
OSD menu set camera image left and right flip up and down

1080P camera seal pressure test for IP69K waterproof level
Camera 100% nitrogen filling for Antifogging

7'' 1080P DVR Quad IP68 Waterproof Monitor Camera System

1080P DVR Quad Monitor(Model:MHD-754D)

Feature Overview: Preview/Recording/Playback

Compression format: H.264

OSD menu function: support single channel screen left and right flip, reversing ruler, reverse trigger,  reverse delay,  reverse priority, power off memory and other functions

Color System:PAL/NTSC (AUTO)

Video input: four-way 1080P/960P/720P/CVB signal mixed input

Display split: 12 Views Modes, 1, 2, 3 or 4 Views

Recording mode: Power on recording

Recording quality: Ordinary  SD  HD  FHD (optional)

Recording format: AVI

Playback mode: local playback / computer playback

Playback display mode:  1, 2, 3 or 4 Views (optional)

Storage: Built-in TF card supports up to 512GB

Interface: External USB interface Support data backup import and export, local upgrade

Monitor Display Resolution: 1024*600

Wide View Angle(CR:10):(up/ down): 50/70 (left/right): 70/70

Contrast Ratio: 500:1

Back-light Brightness: 600cd/m2

Operating temperature: -20ºC to +70ºC

Monitor Waterproof: IP68

Storage temperature: -30ºC to +80ºC

Load Dump:DC14+87V(Td400mS) 5pulses

Free Operating Voltage:DC11-32V

External dimensions: (L x W x T) (199 x 136 x 30mm) without mounting Sun Visor

Weight Approx: 900g

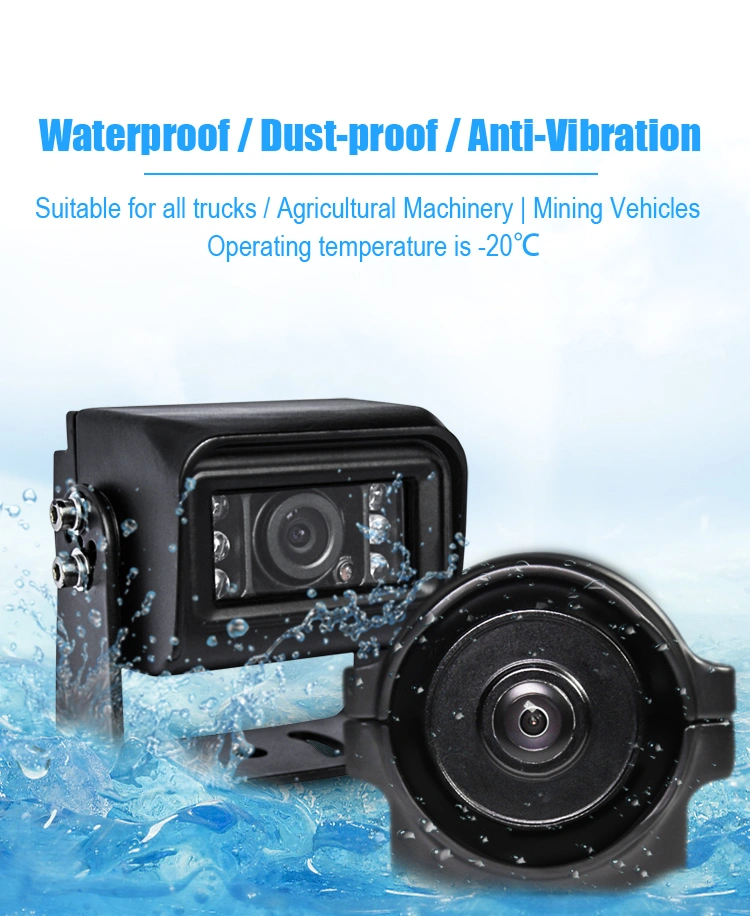

AHD 1080P Camera(MODEL:CHD-19B1M)

Image Type: 1/2.8 Color Cmos

Video output:AHD 1080P

Effective pixel:1920(H)×1080(V)

Usable Illumination : 0Lux (High Intensity Infra-Red LEDs with Auto On Feature)

Free viewing angle: 165°

100% Waterproof: IP69K

Shockproof: 10G

IR-CUT: Automatic switch, day and night mode

Operating temperature: -40ºC to +60ºC (Automatic heating when the camera's running temperature is below 10ºC optional)

Power supply:DC12V (from Reversing Monitor)

CHD-102M Dimensions:  74(W) x 64(H) x 56(D) mm (without mounting)

Product Accessories

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable, 15m cable*4,Remote Control,User's Manual



Contact us if you need more details on Automotive Backup System. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Security Camera System、Reversing Rear View System. If these products fail to match your need, please contact us and we would like to provide relevant information.
