Home > Products > HD Digital Wireless Rearview System > 2.4G Digital Wireless System for RV (DF-723H2361)

2.4G Digital Wireless System for RV (DF-723H2361)

Product Description

2.4g Digital Wireless System for RV (DF-723H2361)

2.4G Digital Wireless System for RV (DF-723H2361)
Display Device
Color CMOS Camera
7''Digital Screen
Transmission Power
Operation Frequency
2400 ~ 2483.5MHz
Image Pick-up Device
1/3" Color CMOS

Receiving Sensitivity

-86dBm(1MHZ QPSK MD300RE)

Picture Elements


Horizontal Resolution
600 TV Lines
Minimum illumination
0 Lux At Night (IR LED    ON)
Load Dump
DC 12+87V/400ms
View Angle
Operating Temperature
Waterproof rating
Storage Temperature
Shockproof Rating
operating voltage range
DC8V~32V (5W Max)
operating voltage range
DC8~32V(3W Max)

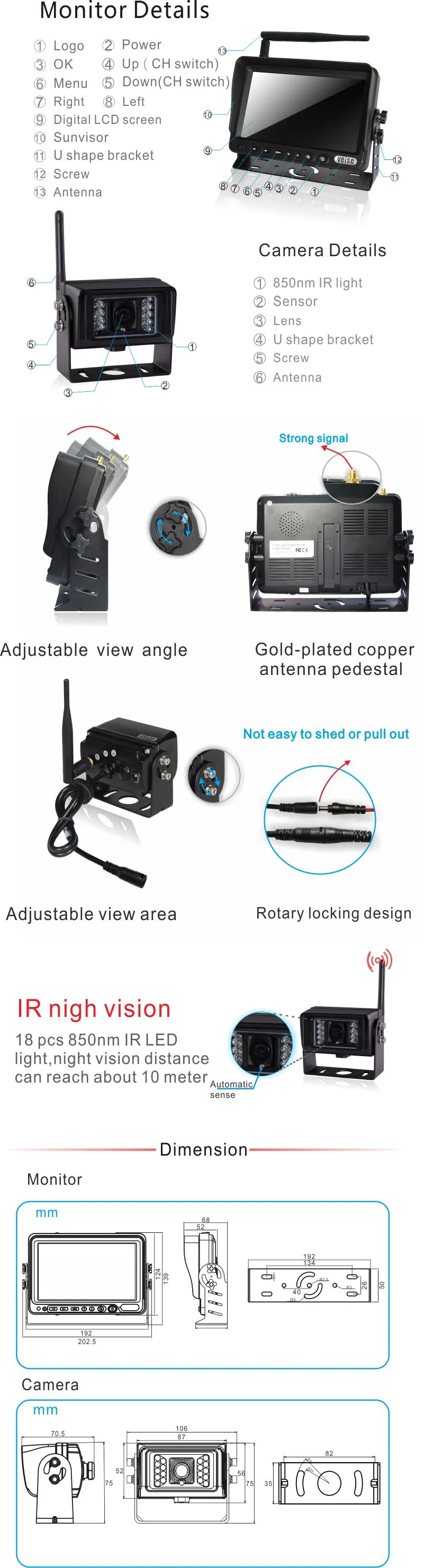

Dimension(L x W x T)
106(W) x 75(H) x 70.4(D)

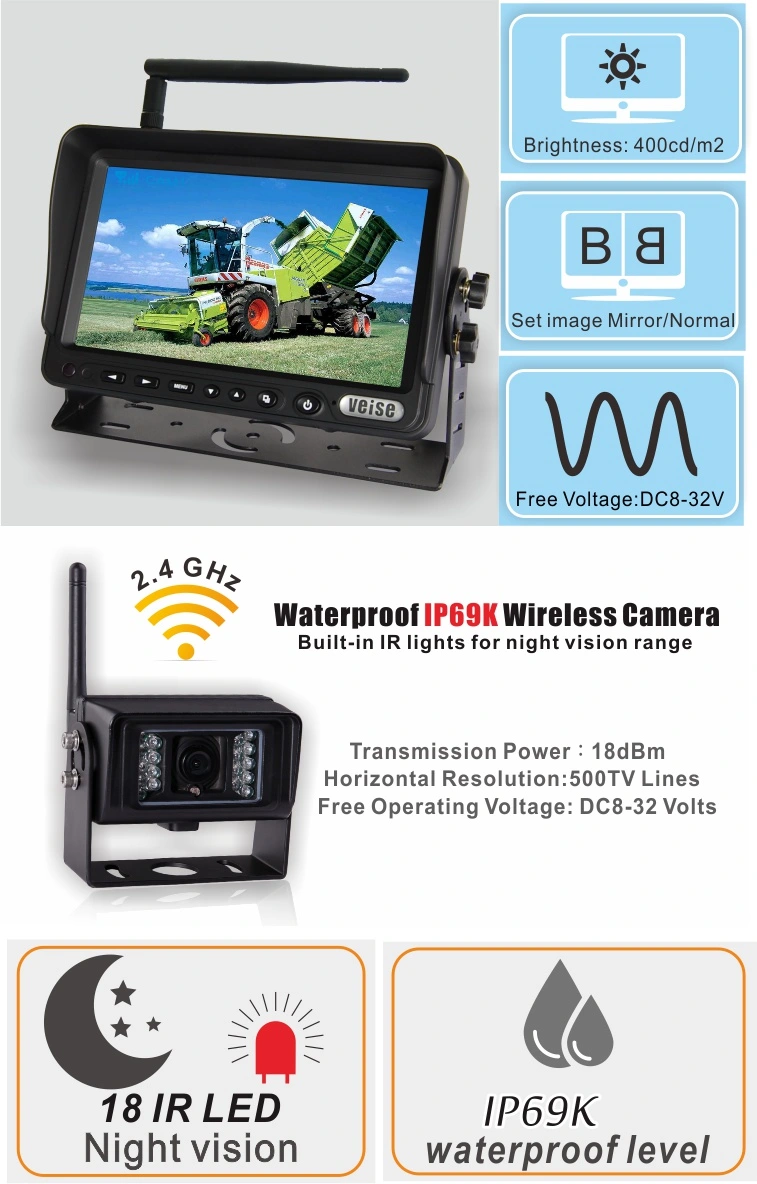

Specifications:1)7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver/Transmission distance/anti-interferenceability/Free wiring, a Dentsu, easy to install.

2)Monitor circuit has protector for battery reverse(+/-).

3) LED backlight display with constant voltage constant current circuit protection. It can solve LED working temperature problems (the limit of LED backlight's current) and prolong life.4)Monitor OSD menu can set each channel camera image in 4 mode NOR/MIR/UP/DOWN;the priority for each mode; each trigger cable can be set to trigger to any display mode; time delay setting.5)Two channels digital wireless signal transmission. It supports sub-screen and two screens.6)2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision.7) DC14+87V(Td400mS) 5pulses Load Dump, 400cd/m2 Brightness .8)Free Operating Voltage: DC8~32V2.4G Digital Wireless System for RV (DF-723H2361)

2.4G Digital Wireless System for RV (DF-723H2361)

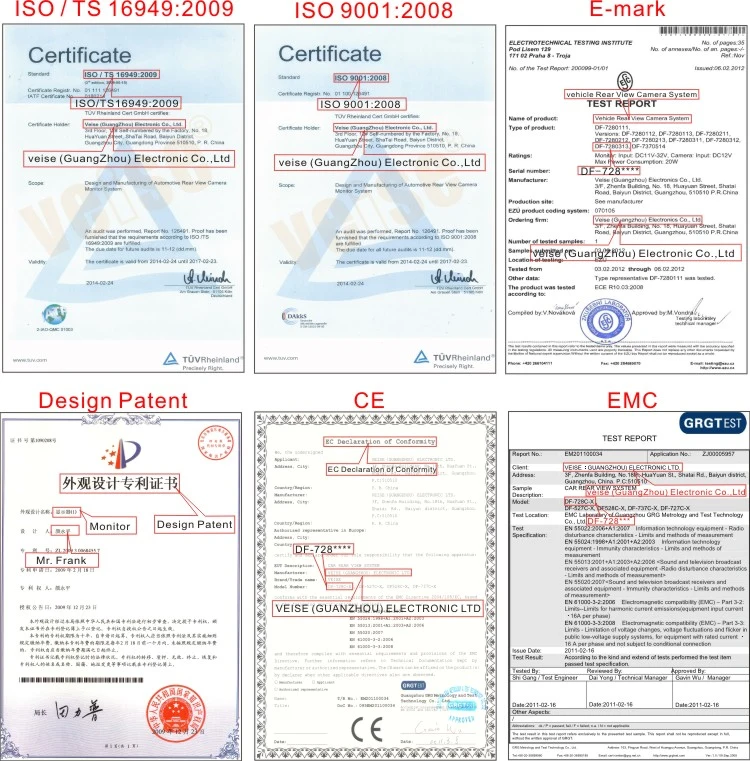

Testing Report:
2.4G Digital Wireless System for RV (DF-723H2361)EMC1)EMC horizontal and vertical radiation test report . Standard: (RE)EN301489-12)EMC positive, negative conduction test report.      Standard:EN55022 CE-Class B_QPAutomotive load dump testing standards12V / 24V system testing .Standard: ISO7637 5aCrank voltage test1)Display Power / trigger input DC24V work off the rear end of 2S,Re-power to ensure product recovery work.2)Monitor power / end trigger input DC24V, within 2S voltage down to 0V, namely to ensure that products rose after 24V restoration work.3)Monitor power / end trigger input DC24V, 1mS intervals to switch five times to ensure product recovery work.Monitor power / end trigger input DC24V, after the interval to 500mS switch 5 times to ensure product recovery work.Services:1, Reply your inquiry in 24 working hours.
2, Customized design is available, OEM and ODM are welcomed.
3, Deliver the goods to our customer all over the world with speed and precision.
4, Offer customer the lowest price with high quality Camera and Monitor.
5, Well-trained and experienced staff to answer all of your inquires in fluent English.
6, Protection of your sales area, ideas of design and all your private information.

7 Inch Digital Wireless Rear View Car Camera with Color MonitorFAQ:1.Are you a trading company or factory?
Answer: We are factory in Guangzhou.
2.What's the warranty of your products?
Answer: Monitor:2 years; Camera:1 year.
3.What's the payment term?
Answer: T/T,Western Union and L/C are available.
4.How can I place the order?
Answer:Please send us an inquiry,confirm your preferable models,our sales shall send you a proforma invoice.After receiving your payment,we will arrange to get goods ready and ship out.

Contact us if you need more details on 2.4G Wireless System. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wireless Security System、Camera System for Tractor. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : HD Digital Wireless Rearview System
