Farm Digital Wirelss CMOS Camera System for Tractor, Truck
Product Description
7 Inches Digital Wireless Monitor Camera System (DF-766M2362)

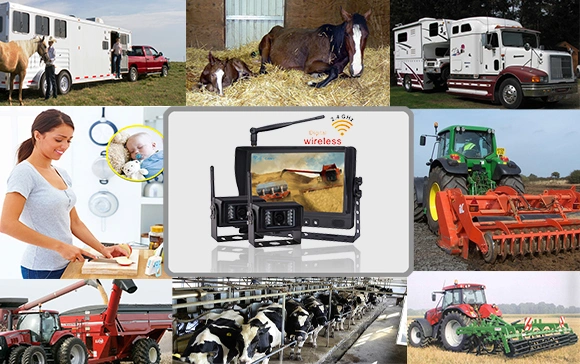

Farm Digital Wirelss CMOS Camera System for Tractor, TruckDigital Wireless Quad Monitor Camera System for Shops, Farm Tractor Equipments,Homes Barns Horse Dairy Poultrys Security Overall Surveillance
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu,
Each camera individually set automatically receive image mode, CAM1 image mode automatically receive priority, CAM1 individually set reversing ruler,
Able to Show 1 or 4 Views,
DC14+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightness,Automatically Adjust Brightness to Display and Button by According Environment
Free Operating Voltage DC10-32V
2.4GHz Wireless Transmission CCTV Camera Built in 18 IR light
Digital Wireless Quad Monitor Camera System
Contact us if you need more details on CMOS Camera. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wireless Camera、Wireless CCTV Camera. If these products fail to match your need, please contact us and we would like to provide relevant information.
Farm Digital Wirelss CMOS Camera System for Tractor, TruckDigital Wireless Quad Monitor Camera System for Shops, Farm Tractor Equipments,Homes Barns Horse Dairy Poultrys Security Overall Surveillance
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu,
Each camera individually set automatically receive image mode, CAM1 image mode automatically receive priority, CAM1 individually set reversing ruler,
Able to Show 1 or 4 Views,
DC14+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightness,Automatically Adjust Brightness to Display and Button by According Environment
Free Operating Voltage DC10-32V
2.4GHz Wireless Transmission CCTV Camera Built in 18 IR light
Digital Wireless Quad Monitor Camera System
| Digital Wireless Quad Monitor Camera System |
| 2.4GHz Digital Wireless Transmission CCTV Camera (MODEL:DF-8275SFS*2) |
| Image Type: 1/4 inch Color CMOS |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤100M |
| Horizontal Resolution:420TV Lines |
| Effective pixel:NTSC:640(H)X480(V);PAL:640(H)X480(V) |
| Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark) |
| Free viewing angle: 120° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC10-32 Volts |
| Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting) |
| Digital Wireless Receive Monitor(Model:SP-766M4) |
| 7" Digital Screen TFT LCD Monitor with Removable Sun Visor |
Built-in 2.4G digital wireless receiver module, supports single screen / quad screen display |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 800RGB(H) X 480(V) dot |
| Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 450 |
| Contrast ratio: 500:1 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage: DC10~32V |
| External dimensions:(L x W x T) (199 x 128 x 28mm) without mounting Sun Visor |
| Weight Approx: 400g |
| Product Accessories |
| U- Support Bracket,Angle Adjustment Screw*2,Removable Sun Visor*1,Electrical Connecting Cable*5,Antenna*6,Hexagon Screw pack*4,User's Manual*1 |
Contact us if you need more details on CMOS Camera. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wireless Camera、Wireless CCTV Camera. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : HD Digital Wireless Rearview System
