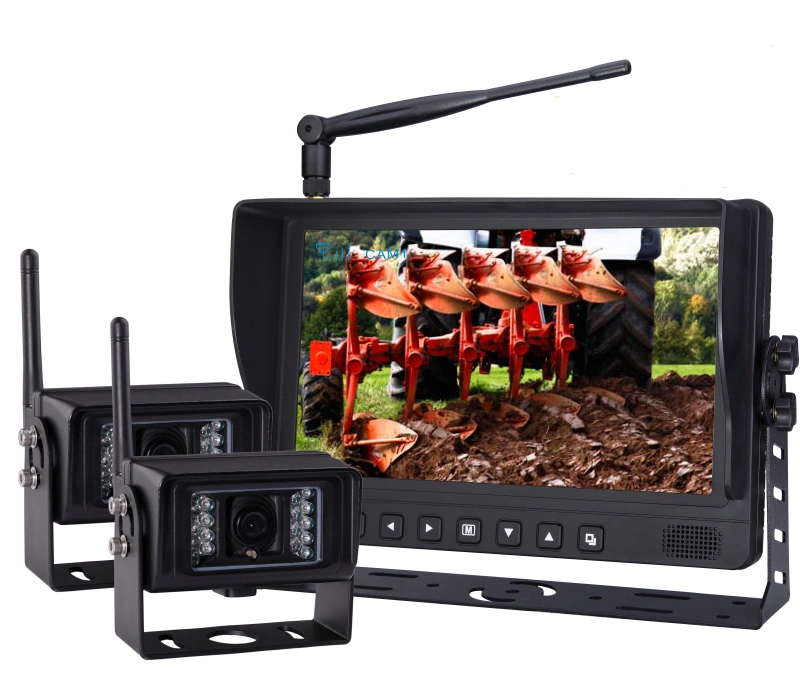

9 Inches Digital Wireless Monitor Camera System

Digital Wireless Monitor Camera System
Digital Wireless Monitor Camera System
Digital Wireless Camera Monitor Systems no Need to Run Cables Through Farm Tractor,Horse Trailer Which Allows You to View Your Horses and Back View
9"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu,
CAM1 and CAM2 individually set automatically receive image mode, CAM1 image mode automatically receive priority, CAM1 individually set reversing ruler,
Picture Mode sub-screen, two screens
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightnes
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision
Free Operating Voltage: DC8~32V

Digital Wireless Monitor Camera System

Digital Wireless Receive Monitor(Model:SP-966M2)

9" Digital Screen TFT LCD Monitor with Removable Sun Visor

Built in 2 CH 2.4GHz Digital Wireless Receiver

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Camera1/2 (Mirror/Normal) image

Color System:PAL/NTSC(AUTO)

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70

Brightness (cd/m2): 400

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC8~32V

External dimensions:(L x W x T) ((234 x158 x 81mm)) without mounting Sun Visor

Weight Approx: 485g

Digital Wireless Waterproof IR Camera(MODEL:DF-8275SFS*2)

Image Type: 1/4 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:≤100M

Horizontal Resolution:600TV Lines

Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC8-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Weight : 450g

Accessorie

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3, Auto cigarette lighter,User's Manual



Contact us if you need more details on Wireless Backup Camera. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Backup Camera System、Reversing Camera System. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : HD Digital Wireless Rearview System
